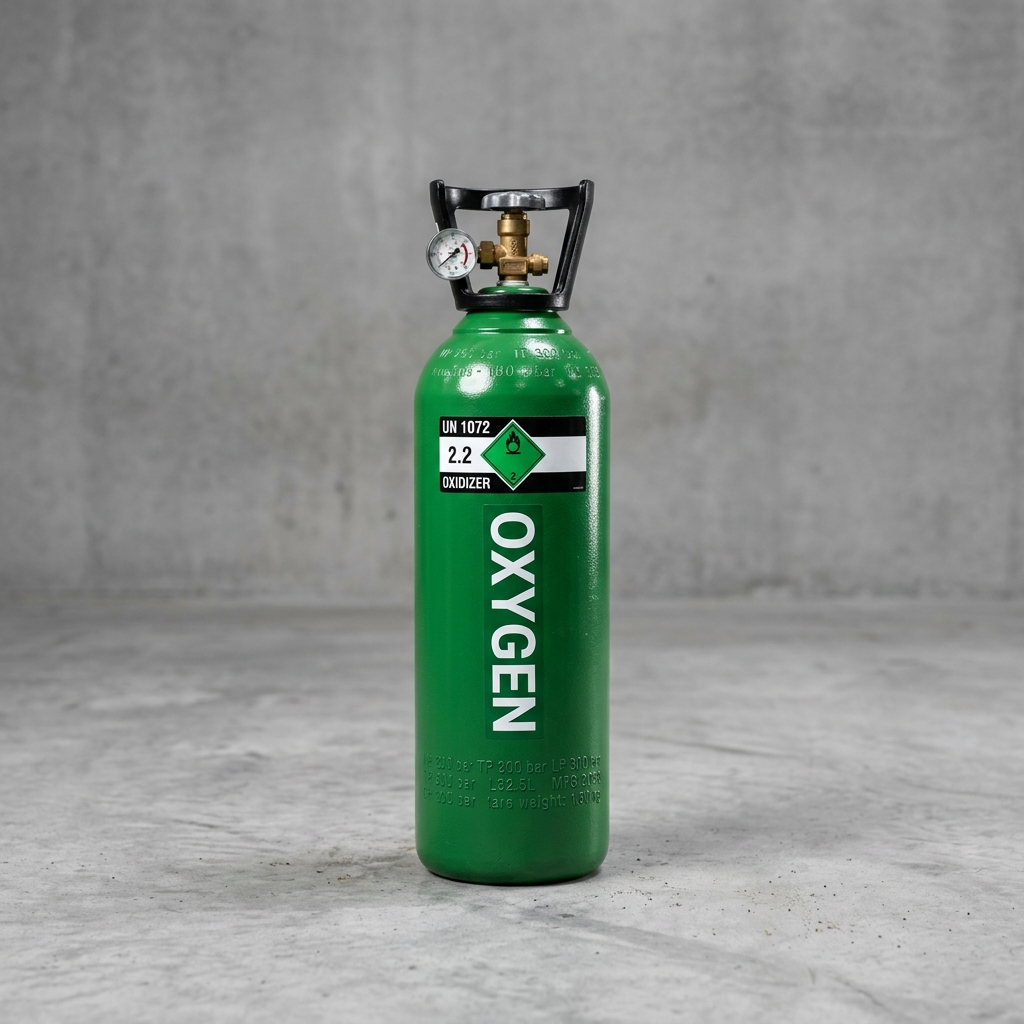

Oxygen Welding Gas
Supplying oxygen gas cylinders and liquid oxygen for welding, cutting, manufacturing, metal fabrication, and industrial processing.
Oxygen Gas Supplier in East Houston
Havard Welding supplies compressed oxygen, liquid oxygen, and oxygen gas cylinders for welding, oxy-fuel cutting, manufacturing, healthcare, and industrial processing throughout East Houston. Our inventory includes portable welding oxygen cylinders, high-capacity big oxygen cylinders, cryogenic liquid oxygen, and oxygen gas supply systems for facilities with continuous gas demand.
About Oxygen Gas
Oxygen (O₂) is a colorless, odorless, nonflammable gas that makes up approximately 21% of Earth's atmosphere. Although it does not burn, oxygen is a powerful oxidizing gas that significantly accelerates combustion when combined with combustible materials.
Oxygen has a gaseous specific gravity of 1.1 and a boiling point of -297.3°F (-183°C). Commercial oxygen is produced through air separation using cryogenic liquefaction and distillation or Vacuum Swing Adsorption (VSA) technology. Depending on application requirements, oxygen is supplied as compressed gas or as a cryogenic liquid.
Its strong oxidizing properties make oxygen an essential industrial gas for metal fabrication, oxy-fuel cutting, welding, heating, chemical processing, petroleum production, and healthcare applications.
Oxygen Gas Applications
Oxygen supports metalworking, thermal processing, chemical production, healthcare, and other industrial operations.
Oxy-Fuel Cutting
Used with acetylene and other fuel gases to produce high-temperature flames for cutting carbon steel and heavy metal sections.
Welding & Fabrication
Supplied for welding, brazing, heating, scarfing, flame straightening, hardening, cleaning, and other metalworking operations.
Medical Oxygen
Medical-grade oxygen supports respiratory therapy and healthcare environments requiring regulated oxygen delivery systems.
Chemical & Petroleum
Used in chemical manufacturing and petroleum processing for producing synthesis gas from coal, natural gas, and liquid fuels.
Industrial Systems
Available for manufacturing facilities requiring compressed gas cylinders, oxygen gas supply systems, cryogenic storage, and continuous support.
Safety & Chemical Specifications
DOT Information
| Property | Specification |
|---|---|
| DOT Shipping Name | Oxygen |
| Hazard Class | Nonflammable Gas (2.2) |
| DOT Label | Oxidizer & Nonflammable Gas |
| UN Number | UN1072 |
| CAS Number | 7782-44-7 |
| Valve Outlet | CGA 540, LB-CGA 110/170 |
| Physical State | Compressed Gas |
| Toxicity | Nontoxic; high concentrations may adversely affect the pulmonary and central nervous systems |
| Fire Potential | Strong oxidizer that vigorously supports combustion. Avoid contact with oil, grease, and combustible materials. |
| Compatible Materials | Noncorrosive; equipment must be suitable for oxygen service. |
Physical Properties
| Property | Value |
|---|---|
| Chemical Formula | O₂ |
| Molecular Weight | 32.00 lb/mol |
| Specific Volume (70°F, 1 atm) | 12.1 ft³/lb (0.755 m³/kg) |
| Specific Heat | 7.03 BTU/lbmol-°F @ 70°F |
| Specific Gravity | 1.1 |
| Gas Density | 0.08281 lb/ft³ @ 70°F, 14.7 PSIA |
Boiling Point
| Temperature: | -297.3°F (-183°C) |
| Liquid Density: | 71.23 lb/ft³ |
| Latent Heat: | 91.4 BTU/lb |
Critical Point
| Temperature: | -181.4°F |
| Pressure: | 731.4 PSIA |
Melting Point
| Temperature: | -361.8°F |
| Pressure: | 0.0220 PSIA |
Available Oxygen Gas Cylinder Sizes
Industrial Compressed Gas Cylinders
| PART NUMBER | CYLINDER SIZE | WEIGHT OF GAS (LB-OZ) | PRESSURE (PSI @ 70F) | DIMENSIONS (Height x Diameter) | CAPACITY (Gallons) | CAPACITY (Liters) |
|---|---|---|---|---|---|---|
| OXY020 | 20 ft³ | 1-10.6 | 2015 | 18" x 5-1/2" | 150 | 567 |
| OXY125 | 125 ft³ | 10-5.6 | 2217 | 47" x 7" | 935 | 3540 |
| OXY251 | 251 ft³ | 20-12.6 | 2217 | 51" x 9" | 1878 | 7108 |
| OXY337 | 337 ft³ | 27-14.5 | 2640 | 55" x 9.25" | 2521 | 9544 |
Medical Compressed Gas Cylinders
| PART NUMBER | CYLINDER SIZE | WEIGHT OF GAS (LB-OZ) | PRESSURE (PSI @ 70F) | DIMENSIONS (Height x Diameter) | CAPACITY (Gallons) | CAPACITY (Liters) |
|---|---|---|---|---|---|---|
| OXYD | 15 ft³ | 1-3.9 | 2015 | 20" x 4.25" | 112 | 425 |
| OXYE | 24.9 ft³ | 2-1.0 | 2015 | 30" x 4.25" | 186 | 705 |
| OXYM | 125 ft³ | 10-5.6 | 2217 | 47" x 7" | 935 | 3540 |
| OXYH | 251 ft³ | 20-12.6 | 2217 | 51" x 9" | 1878 | 7108 |
